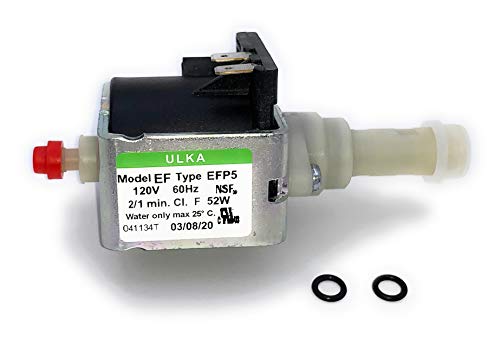

MacMaxe ULKA Model E Type EFP5 – Solenoid Vibratory Water Pump – 2/1 min ON/OFF, 120V 60Hz 52W – For Breville Espresso Machines



Add to the wishlist

Brand: MacMaxe


  • ULKA Model E, Type EFP5 ~ 120V, 60Hz 52W
  • Self priming at 0 bar, Integrated diode (1N 4007P), Thermal cutout pocket, Pressure max 15 bar.
  • Compact solution for high pressure and low flow applications.
  • Full detailed electrical and hydraulic inspection
  • Replacement Pump for Breville 800ESXL, BES820XL, BES830XL, BES840XL, BES860XL, BES870XL, BES900XL, BES920XL, BES980XL, BES990, BES500, BES878

Details: Model E, Type EFP5,  ~ 120V, 60Hz 52W. fittings ø 1/8"- ø 6 mm; pressure max 15 bar; water temperature max 25°C; integrated diode (1N 4007P); lead connector 6.3x0.8 mm; All pumps are designed and tested using water as fluid.Pump should have water inside after removing red cap off of water inlet.A brown stain may be visible around the water inlet, it is normal.We do not recommend to stock the pumps for long time,especially in high temperature storage house and in particularfor pumps without water inside. Sometimes pumps will develop an airpocket in shipping or from storage.TO WORK PROPERLY, PUMP MUST HAVE WATER INSIDE . EMPTY PUMP WILL MAKE A LOUD BUZZING NOISE.To remove the airpocket, use a syringe filled with water and pushthe water through the pump. Make sure the other end is clear and drained,or connected within machine and air can escape the other side. The thread connection G 1/8“ of the plastic pump outlet is not subjectto the norm UNI ISO 228/2. The seal is not guaranteed by the thread.In fact the hydraulic seal has to be assuredby the seal OR 2025 Ø 1.76 x 6.07 mm. (Seal include in the package) Replacement Pump for Breville Espresso Machine:  800ESXL BES820XL BES830XL BES840XL BES860XL BES870XL BES900XL BES920XL BES980XL BES990 BES500 BES878

Item Condition: New
